Please contact us for more photos of W3A45C103MAT2A
| Part Number | W3A45C103MAT2A |
|---|---|
| Manufacturer | AVX |
| Quantity in stock | 102710 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Ceramic Array 0.01uF 50V X7R 20% 0612 SMD 4 Capacitor 125\u00b0C Paper T R Embossed T R |
| Category | Capacitors |
| Family | Capacitor Array |
| ROHS Compliant | Yes |
| MSL Level | W3A45C103MAT2A |
| Datasheet download |  W3A45C103MAT2A.pdf |
| Part Number | W3A45C103MAT2A |
|---|---|
| Capacitance Value | 0.01 uF |
| Operating Temperature | -55 to 125 °C |
| Lead Finish | Matte Tin |
| Mounting | Surface Mount |
| MSL Level | 1 |
| Tolerance | 20 % |
| Max Processing Temp | 260 °C |
| Product Dimensions | 1.6 x 3.2 x 1.35 mm mm |
| Voltage(DC) | 50 V |
| Construction | Flat |
| Terminal Pitch | 0.76 mm |
| Package/Case | 0612 |
| Case Size | 0612 |
| Rad Hard | No |
| Dielectric | X7R |
| Number of Capacitors | 4 |
| Number of Terminals | 8 |
| Dielectric Material | Ceramic |
| Product Depth | 3.2 mm |
| Product Height | 1.35(Max) mm |
| Product Length | 1.6 mm |
| Replacement Part Number | PART-W3A45C103MAT2A |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
AVX | Cap Ceramic Array 10pF 50V C0G 10% 0612 SMD 4 Capacitor 125\u00b0C Paper T R Embossed T R Download PDF datasheet for W3A45A100KAT2A.pdf |
|
KEMET | Cap Ceramic Array 0.1uF 16V X7R 10% 0612 SMD 4 Capacitor 125\u00b0C Bulk Download PDF datasheet for C1632C104K4RAC.pdf |
|
AVX | Cap Ceramic Array 0.1uF 16V X7R 20% 0508 SMD 4 Capacitor 125\u00b0C Paper T R Embossed T R Download PDF datasheet for W2A4YC104MAT2A.pdf |
|
AVX | Cap Ceramic Array 100pF 100V C0G -20% to 50% 0612 SMD 4 Capacitor 125\u00b0C Embossed T R Download PDF datasheet for W3F41A1018AT1A.pdf |
|
AVX | Cap Ceramic Array 470pF 50V X7R 20% 0612 SMD 4 Capacitor 125\u00b0C Paper T R Embossed T R Download PDF datasheet for W3A45C471MAT2A.pdf |
|
KEMET | Cap Ceramic Array 0.0033uF 200V X7R 10% 0612 SMD 4 Capacitors 125\u00b0C Plastic T R Download PDF datasheet for CA064X332K2RACAUTO.pdf |
|
AVX | Cap Ceramic Array 470pF 50V X7R -20% to 50% 0612 SMD 4 Capacitor 125\u00b0C Embossed T R Download PDF datasheet for W3F45C4718AT1F.pdf |
|
AVX | Cap Ceramic Array 100pF 50V C0G 10% 0612 SMD 4 Capacitor 125\u00b0C Paper T R Embossed T R Download PDF datasheet for W3A45A101KAT2A.pdf |
|

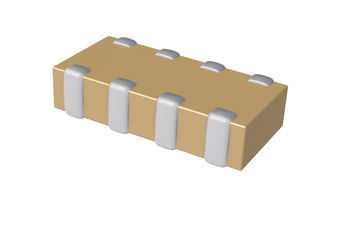

KEMET | Cap Ceramic Array 0.001uF 50V X7R 10% 0612 SMD 4 Capacitor 125\u00b0C Embossed Plastic T R Download PDF datasheet for CA064C102K5RACTU.pdf |
|
