Please contact us for more photos of L2L14Z225MAB1S
| Part Number | L2L14Z225MAB1S |
|---|---|
| Manufacturer | AVX |
| Quantity in stock | 290740 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Ceramic Array 2.2uF 4V X7S 20% 0508 SMD 4 Capacitor 125\u00b0C T R |
| Category | Capacitors |
| Family | Capacitor Array |
| ROHS Compliant | Yes |
| MSL Level | L2L14Z225MAB1S |
| Datasheet download |  L2L14Z225MAB1S.pdf |
| Part Number | L2L14Z225MAB1S |
|---|---|
| Construction | Flat |
| Number of Capacitors | 4 |
| Lead Finish | Tin|Lead |
| Mounting | Surface Mount |
| Number of Terminals | 8 |
| Operating Temperature | -55 to 125 °C |
| Pin Count | 8 |
| Tolerance | 20 |
| Termination Style | Wraparound |
| Voltage(DC) | 4 V |
| Case Size | 0508 |
| Dielectric | X7S |
| Supplier Package | 0306 |
| Maximum Processing Temperature | 260 °C |
| Package Dimensions | 2.03 x 1.27 x 0.55 mm |
| Capacitance Value | 2.2 uF |
| Dielectric Material | Ceramic |
| Rad Hard | No |
| Terminal Pitch | 0.5 mm |
| Package/Case | 0508 |
| Product Depth | 1.27 mm |
| Product Height | 0.55 mm |
| Product Length | 2.03 mm |
| Replacement Part Number | PART-L2L14Z225MAB1S |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
AVX | Cap Ceramic Array 180pF 50V C0G 10% 0612 SMD 4 Capacitor 125\u00b0C Paper T R Embossed T R Download PDF datasheet for W3A45A181KAT2A.pdf |
|
AVX | Cap Ceramic Array 180pF 25V C0G 10% 0612 SMD 4 Capacitor 125\u00b0C Paper T R Embossed T R Download PDF datasheet for W3A43A181KAT2A.pdf |
|
AVX | Cap Ceramic Array 18pF 50V C0G 10% 0508 SMD 4 Capacitor 125\u00b0C Paper T R Embossed T R Download PDF datasheet for W2A45A180KAT2A.pdf |
|

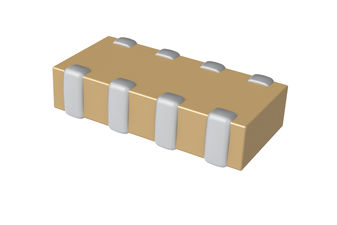

KEMET | Cap Ceramic Array 0.047uF 50V X7R 10% 0612 SMD 4 Capacitor 125\u00b0C Plastic T R Download PDF datasheet for CA064X473K5RACAUTO.pdf |
|
