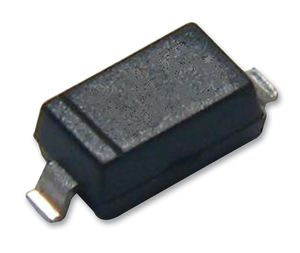

Please contact us for more photos of MM3Z18VST1G
| Part Number | MM3Z18VST1G |
|---|---|
| Manufacturer | ON Semiconductor |
| Quantity in stock | 406720 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Zener Single 17.955V 2% 200mW 2-Pin SOD-323 T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | MM3Z18VST1G |
| Datasheet download |  MM3Z18VST1G.pdf |
| Part Number | MM3Z18VST1G |
|---|---|
| Operating Temperature | -65 to 150 °C |
| Product Dimensions | 1.7 x 1.25 x 0.9 mm |
| Test Current | 5 mA |
| Pin Count | 2 |
| Maximum Power Dissipation | 200 mW |
| Configuration | Single |
| Rad Hard | No |
| Maximum Reverse Leakage Current | 0.05 uA |
| Max Processing Temp | 260 |
| Maximum Zener Impedance | 45 Ohm |
| Lead Finish | Matte Tin |
| Nominal Zener Voltage | 17.955 V |
| Mounting | Surface Mount |
| Supplier Package | SOD-323 |
| Zener Voltage Tolerance | 2 % |
| ESD Protection | Yes |
| Type | Voltage Regulator |
| MSL Level | 1 |
| Typical Voltage Temperature Coefficient | 14.2 mV/K |
| Package | 2SOD-323 |
| Replacement Part Number | PART-MM3Z18VST1G |
| Weight | Contact us |
| Country of Origin | - |
