IDD12SG60C Infineon

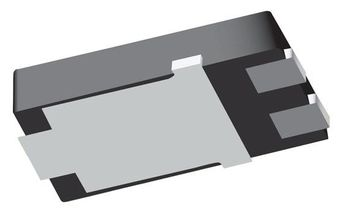

IDD12SG60C Images

Please contact us for more photos of IDD12SG60C

Part Number IDD12SG60C
Manufacturer Infineon
Quantity in stock 232410 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Diode Schottky 600V 12A 3-Pin TO-252 T R
Category Discrete Semiconductor
Family Diode
ROHS Compliant Yes
MSL Level IDD12SG60C
Datasheet download IDD12SG60C.pdf
Request Quotation for IDD12SG60C

IDD12SG60C Specifications

Part Number IDD12SG60C
Operating Temperature -55 to 175 °C
Pin Count 3
Supplier Package TO-252
Rad Hard No
Configuration Single
Peak Forward Voltage 2.1 V
MSL Level 1
Peak Reverse Current 100 uA
Type Schottky Diode
Mounting Surface Mount
Max Processing Temp 260
Product Dimensions 6.73(Max) x 6.22(Max) x 2.41(Max)
Lead Finish Tin Over Nickel
Peak Non-Repetitive Surge Current 59 A
Peak Reverse Repetitive Voltage 600 V
Peak Average Forward Current 12@Tc=130C A
Package 3TO-252
Replacement Part Number PART-IDD12SG60C
Weight Contact us
Country of Origin -
