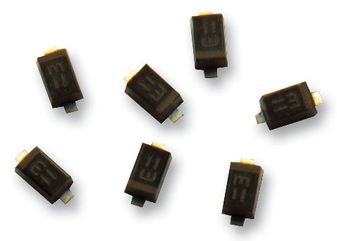

Please contact us for more photos of BZT52H-C3V6,115
| Part Number | BZT52H-C3V6,115 |
|---|---|
| Manufacturer | Nexperia |
| Quantity in stock | 723090 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Zener Single 3.6V 6% 830mW 2-Pin SOD-123F T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | BZT52H-C3V6,115 |
| Datasheet download |  BZT52H-C3V6,115.pdf |
| Part Number | BZT52H-C3V6,115 |
|---|---|
| Rad Hard | No |
| Maximum Reverse Leakage Current | 5 uA |
| Zener Voltage Tolerance | 6 % |
| Mounting | Surface Mount |
| Lead Finish | Tin |
| MSL Level | 1 |
| Supplier Package | SOD-123F |
| Nominal Zener Voltage | 3.6 V |
| Test Current | 5 mA |
| Operating Temperature | -65 to 150 °C |
| ESD Protection | No |
| Maximum Zener Impedance | 95 Ohm |
| Max Processing Temp | 260 |
| Typical Voltage Temperature Coefficient | -1.75 mV/K |
| Product Dimensions | 2.7 x 1.7 x 1.2 mm |
| Pin Count | 2 |
| Maximum Power Dissipation | 830 mW |
| Configuration | Single |
| Package | 2SOD-123F |
| Replacement Part Number | PART-BZT52H-C3V6,115 |
| Weight | Contact us |
| Country of Origin | - |
