NSVBAT54SWT1G ON Semiconductor

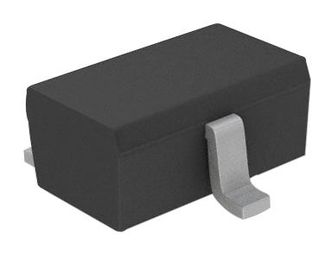

NSVBAT54SWT1G Images

Please contact us for more photos of NSVBAT54SWT1G

Part Number NSVBAT54SWT1G
Manufacturer ON Semiconductor
Quantity in stock 311830 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Diode Schottky 30V 0.2A 3-Pin SC-70 T R
Category Discrete Semiconductor
Family Diode
ROHS Compliant Yes
MSL Level NSVBAT54SWT1G
Datasheet download NSVBAT54SWT1G.pdf
Request Quotation for NSVBAT54SWT1G

NSVBAT54SWT1G Specifications

Part Number NSVBAT54SWT1G
Peak Reverse Recovery Time 5 ns
Peak Forward Voltage [email protected] V
Mounting Surface Mount
Peak Reverse Current 2@25V uA
Screening Level Automotive
Product Dimensions 2.1 x 1.24 x 0.85 mm
Operating Temperature -55 to 125 °C
Pin Count 3
Configuration Dual Series
Supplier Package SC-70
Peak Non-Repetitive Surge Current 0.6 A
Rad Hard No
Peak Reverse Repetitive Voltage 30 V
Peak Average Forward Current 0.2 A
Type Schottky Diode
Package 3SC-70
Replacement Part Number PART-NSVBAT54SWT1G
Weight Contact us
Country of Origin -
