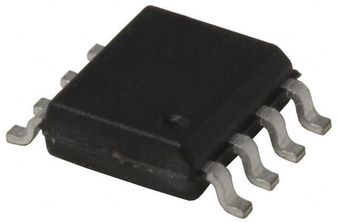

Please contact us for more photos of TPS54560DDA
| Part Number | TPS54560DDA |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 536780 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conv DC-DC Single-OUT Step Down 4.5V 60V 8-Pin PowerSO Tube |
| Category | Power Management IC |
| Family | DC to DC Converter |
| ROHS Compliant | Yes |
| MSL Level | TPS54560DDA |
| Datasheet download |  TPS54560DDA.pdf |
| Part Number | TPS54560DDA |
|---|---|
| Switching Regulator | Yes |
| Rad Hard | No |
| Type | Step Down |
| Maximum Input Voltage | 60 V |
| Switching Frequency | 100 to 2500 kHz |
| Mounting | Surface Mount |
| Supplier Package | Power SO |
| Output Voltage | 0.8 to 58.8 V |
| Maximum Output Current | 5 A |
| Minimum Input Voltage | 4.5 V |
| Output Type | Adjustable |
| Operating Temperature | -40 to 150 °C |
| Pin Count | 8 |
| Product Dimensions | 4.9 x 3.9 x 1.47 |
| Number of Outputs | 1 |
| Package | 8Power SO |
| Replacement Part Number | PART-TPS54560DDA |
| Weight | Contact us |
| Country of Origin | - |
