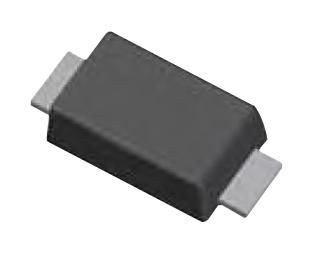

Please contact us for more photos of RSX101VA-30TR
| Part Number | RSX101VA-30TR |
|---|---|
| Manufacturer | ROHM |
| Quantity in stock | 377710 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Schottky 30V 1A 2-Pin TUMD T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | RSX101VA-30TR |
| Datasheet download |  RSX101VA-30TR.pdf |
| Part Number | RSX101VA-30TR |
|---|---|
| Supplier Package | TUMD |
| Peak Forward Voltage | 0.47 V |
| Type | Schottky Diode |
| Peak Reverse Current | 200 uA |
| Rad Hard | No |
| Pin Count | 2 |
| Lead Finish | Tin/Copper |
| Configuration | Single |
| Peak Reverse Repetitive Voltage | 30 V |
| Max Processing Temp | 260|265 |
| Mounting | Surface Mount |
| Peak Average Forward Current | 1 A |
| Peak Non-Repetitive Surge Current | 5 A |
| Product Dimensions | 1.9 x 1.3 x 0.6 mm |
| Package | 2TUMD |
| Replacement Part Number | PART-RSX101VA-30TR |
| Weight | Contact us |
| Country of Origin | - |
