PMEG3002AEL,315 Nexperia

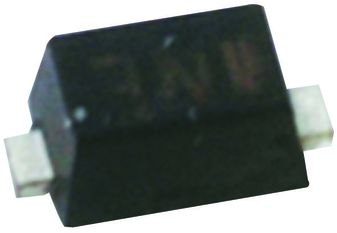

PMEG3002AEL,315 Images

Please contact us for more photos of PMEG3002AEL,315

Part Number PMEG3002AEL,315
Manufacturer Nexperia
Quantity in stock 615300 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Diode Schottky 30V 0.2A 2-Pin SOD-882 T R
Category Discrete Semiconductor
Family Diode
ROHS Compliant Yes
MSL Level PMEG3002AEL,315
Datasheet download PMEG3002AEL,315.pdf
Request Quotation for PMEG3002AEL,315

PMEG3002AEL,315 Specifications

Part Number PMEG3002AEL,315
Rad Hard No
Mounting Surface Mount
Product Dimensions 1.02 x 0.62 x 0.47 mm
Lead Finish Tin
MSL Level 1
Peak Reverse Current 50 uA
Operating Temperature -65 to 150 °C
Peak Reverse Repetitive Voltage 30 V
Peak Forward Voltage 0.48 V
Supplier Package SOD-882
Max Processing Temp 260
Peak Non-Repetitive Surge Current 3 A
Peak Average Forward Current 0.2 A
Pin Count 2
Configuration Single
Type Schottky Diode
Package 2SOD-882
Replacement Part Number PART-PMEG3002AEL,315
Weight Contact us
Country of Origin -
