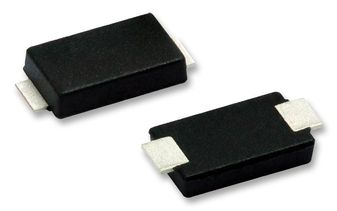

Please contact us for more photos of BAS516,135
| Part Number | BAS516,135 |
|---|---|
| Manufacturer | Nexperia |
| Quantity in stock | 555850 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Switching 100V 0.25A 2-Pin SOD-523 T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | BAS516,135 |
| Datasheet download |  BAS516,135.pdf |
| Part Number | BAS516,135 |
|---|---|
| Peak Forward Voltage | [email protected] V |
| Peak Non-Repetitive Surge Current | 4 A |
| Peak Reverse Current | 0.5@80V uA |
| Operating Temperature | -65 to 150 °C |
| Max Processing Temp | 260 |
| Supplier Package | SOD-523 |
| Configuration | Single |
| Pin Count | 2 |
| Peak Reverse Recovery Time | 4 ns |
| Peak Average Forward Current | 0.25 A |
| Rad Hard | No |
| Mounting | Surface Mount |
| Type | Switching Diode |
| Product Dimensions | 1.25 x 0.85 x 0.65 mm |
| MSL Level | 1 |
| Peak Reverse Repetitive Voltage | 100 V |
| Lead Finish | Tin |
| Package | 2SOD-523 |
| Replacement Part Number | PART-BAS516,135 |
| Weight | Contact us |
| Country of Origin | - |
