MDSM-9PE-Z10-VR25 ITT Interconnect Solutions

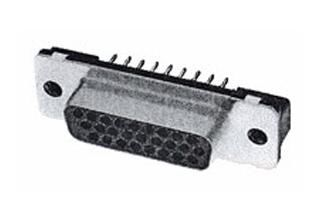

MDSM-9PE-Z10-VR25 Images

Please contact us for more photos of MDSM-9PE-Z10-VR25

Part Number MDSM-9PE-Z10-VR25
Manufacturer ITT Interconnect Solutions
Quantity in stock 665460 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Conn D-Subminiature PIN 9 POS 1.27mm Solder RA Thru-Hole 9 Terminal 1 Port Tube
Category Connectors
Family Connector D-Subminiature
ROHS Compliant Yes
MSL Level MDSM-9PE-Z10-VR25
Datasheet download MDSM-9PE-Z10-VR25.pdf
Request Quotation for MDSM-9PE-Z10-VR25

MDSM-9PE-Z10-VR25 Specifications

Part Number MDSM-9PE-Z10-VR25
Contact Plating Gold Over Palladium Nickel
Number of Contacts 9
Number of Terminals 9
Product Dimensions 19.9 x 18.1 x 8 mm
Number of Ports 1
Housing Material Steel
Rad Hard No
Type D-Subminiature
Pitch 1.27 mm
Contact Material Copper Alloy
Termination Method Solder
Gender PIN
Mounting Through Hole
Body Orientation Right Angle
Operating Temperature -55 to 125 °C
Product Depth 18.1 mm
Product Height 8 mm
Product Length 19.9 mm
Replacement Part Number PART-MDSM-9PE-Z10-VR25
Weight Contact us
Country of Origin -
