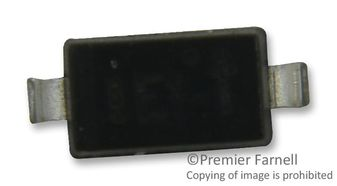

Please contact us for more photos of TLZ6V8B-GS08
| Part Number | TLZ6V8B-GS08 |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 854030 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Zener Single 6.8V 3% 500mW 2-Pin Mini-MELF SOD-80 T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | TLZ6V8B-GS08 |
| Datasheet download |  TLZ6V8B-GS08.pdf |
| Part Number | TLZ6V8B-GS08 |
|---|---|
| Maximum Reverse Leakage Current | 2 uA |
| Pin Count | 2 |
| Rad Hard | No |
| Operating Temperature | -65 to 175 °C |
| Configuration | Single |
| Lead Finish | Tin/Silver |
| Max Processing Temp | 235 to 260 |
| Test Current | 20 mA |
| Supplier Package | Mini-MELF SOD-80 |
| Mounting | Surface Mount |
| Zener Voltage Tolerance | 3 % |
| Maximum Zener Impedance | 8 Ohm |
| Type | Voltage Regulator |
| MSL Level | 1 |
| ESD Protection | No |
| Nominal Zener Voltage | 6.8 V |
| Maximum Power Dissipation | 500 mW |
| Product Dimensions | 3.7 x 1.6 x 1.6 mm |
| Package | 2Mini-MELF SOD-80 |
| Replacement Part Number | PART-TLZ6V8B-GS08 |
| Weight | Contact us |
| Country of Origin | - |
