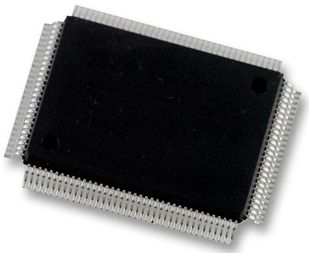

Please contact us for more photos of XC2C128-7TQG144C
| Part Number | XC2C128-7TQG144C |
|---|---|
| Manufacturer | Xilinx |
| Quantity in stock | 674730 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | CPLD CoolRunner -II Family 3K Gates 128 Macro Cells 152MHz 0.18um (CMOS) Technology 1.8V 144-Pin TQFP |
| Category | Programmable Logic IC |
| Family | CPLD |
| ROHS Compliant | Yes |
| MSL Level | XC2C128-7TQG144C |
| Datasheet download |  XC2C128-7TQG144C.pdf |
| Part Number | XC2C128-7TQG144C |
|---|---|
| Maximum Internal Frequency | 300 MHz |
| Memory Type | ROMLess |
| Typical Operating Supply Voltage | 1.8 V |
| Maximum Operating Frequency | 152 MHz |
| Lead Finish | Matte Tin |
| Mounting | Surface Mount |
| Number of Logic Blocks/Elements | 8 |
| Screening Level | Commercial |
| Number of Product Terms per Macro | 40 |
| Number of User I/Os | 100 |
| Individual Output Enable Control | No |
| Maximum Propagation Delay Time | 7.5 ns |
| Speed Grade | 7 |
| Re-programmability Support | No |
| Pin Count | 144 |
| MSL Level | 3 |
| Operating Temperature | 0 to 70 °C |
| Rad Hard | No |
| Max Processing Temp | 260 |
| Maximum Operating Supply Voltage | 1.9 V |
| Minimum Operating Supply Voltage | 1.7 V |
| Number of Macro Cells | 128 |
| Fabrication Technology | 0.18um (CMOS) |
| Supplier Package | TQFP |
| In System Programmability | Yes |
| Device System Gates | 3000 |
| Product Dimensions | 20 x 20 x 1.4 mm |
| Package | 144TQFP |
| Replacement Part Number | PART-XC2C128-7TQG144C |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Xilinx | CPLD XC9500XL Family 1.6K Gates 72 Macro Cells 100MHz 0.35um (CMOS) Technology 3.3V 48-Pin CSBGA Download PDF datasheet for XC9572XL-10CS48C.pdf |
|
Xilinx | CPLD CoolRunner XPLA3 Family 3K Gates 128 Macro Cells 95MHz 0.35um (CMOS) Technology 3.3V 100-Pin VTQFP Download PDF datasheet for XCR3128XL-10VQG100C.pdf |
|

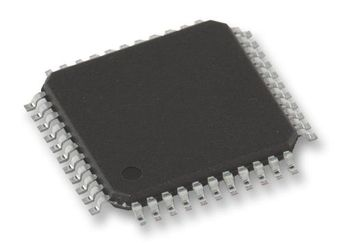

Xilinx | CPLD CoolRunner -II Family 1.5K Gates 64 Macro Cells 159MHz 0.18um (CMOS) Technology 1.8V 44-Pin VTQFP Download PDF datasheet for XC2C64A-7VQG44C.pdf |
|
