WSL25125L000FEA18 Vishay

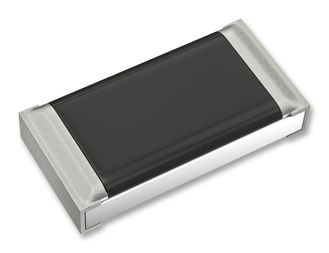

WSL25125L000FEA18 Images

Please contact us for more photos of WSL25125L000FEA18

Part Number WSL25125L000FEA18
Manufacturer Vishay
Quantity in stock 319530 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Res Metal Strip 2512 0.005 Ohm 1% 2W \u00b1110ppm \u00b0C Molded SMD SMD Embossed Plastic T R
Category Resistor
Family Resistor Fixed Single-Surface Mount
ROHS Compliant Yes
MSL Level WSL25125L000FEA18
Datasheet download WSL25125L000FEA18.pdf
Request Quotation for WSL25125L000FEA18

WSL25125L000FEA18 Specifications

Part Number WSL25125L000FEA18
Product Dimensions 6.35 x 3.18 x 0.635 mm
Case Style Molded
Rad Hard No
Max Processing Temp 260
Mounting Surface Mount
Lead Finish Matte Tin
MSL Level 1
Package Type SMD
Resistance Value 5 MOhm
Type Metal Strip
Tolerance 1 %
Operating Temperature -65 to 170 °C
Power Rating 2 W
Temperature Coefficient ±110 ppm/°C
Case Size 2512
Product Depth 3.18 mm
Product Height 0.635 mm
Product Length 6.35 mm
Product Weight 63.6 mg
Replacement Part Number PART-WSL25125L000FEA18
Weight Contact us
Country of Origin -
