PTN78020HAH Texas Instruments

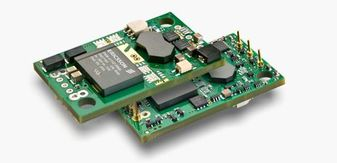

PTN78020HAH Images

Please contact us for more photos of PTN78020HAH

Part Number PTN78020HAH
Manufacturer Texas Instruments
Quantity in stock 411550 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Module DC-DC 1-OUT 11.85V to 22V 6A 90W 7-Pin DIP Module
Category Power Supplies
Family DC to DC Power Supply
ROHS Compliant Yes
MSL Level PTN78020HAH
Datasheet download PTN78020HAH.pdf
Request Quotation for PTN78020HAH

PTN78020HAH Specifications

Part Number PTN78020HAH
Output Current 6 A
Output Power 90 W
Product Dimensions 37.97 x 22.1 x 8.75 mm
Number of Outputs 1
Mounting Through Hole
Supplier Package DIP Module
Max Processing Temp 260
Input Voltage 15 to 36 V
Output Voltage 11.85 to 22 V
Type Step Down
Pin Count 7
Switching Regulator Yes
Rad Hard No
Package 7DIP Module
Replacement Part Number PART-PTN78020HAH
Weight Contact us
Country of Origin -
