Please contact us for more photos of PTH12050WAZ
| Part Number | PTH12050WAZ |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 399300 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Module DC-DC 1-OUT 1.2V to 5.5V 6A 6-Pin DIP Module Tray |
| Category | Power Supplies |
| Family | DC to DC Power Supply |
| ROHS Compliant | Yes |
| MSL Level | PTH12050WAZ |
| Datasheet download |  PTH12050WAZ.pdf |
| Part Number | PTH12050WAZ |
|---|---|
| Mounting | Surface Mount |
| Type | Step Down |
| Number of Outputs | 1 |
| Output Voltage | 1.2 to 5.5 V |
| Switching Regulator | Yes |
| Output Current | 6 A |
| Pin Count | 6 |
| MSL Level | 3 |
| Product Dimensions | 22.1 x 12.57 x 8.25 mm |
| Supplier Package | DIP Module |
| Input Voltage | 12(TYP) V |
| Lead Finish | Tin/Silver/Copper |
| Rad Hard | No |
| Max Processing Temp | 260 |
| Package | 6DIP Module |
| Replacement Part Number | PART-PTH12050WAZ |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Texas Instruments | Module DC-DC 1-OUT 0.8V to 3.6V 30A 13-Pin DIP Module Tray Download PDF datasheet for PTH05030WAH.pdf |
|
Artesyn Embedded Technologies | Module DC-DC 1-OUT 0.59V to 5.1V 3A 15W 5-Pin Download PDF datasheet for LDO03C-005W05-VJ.pdf |
|

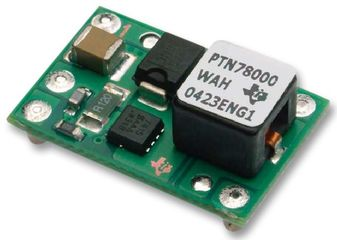

Texas Instruments | Module DC-DC 1-OUT 2.5V to 12.6V 3A 7-Pin DIP Module Download PDF datasheet for PTN78060WAH.pdf |
|
