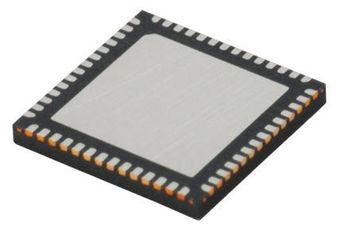

DAC7728SRTQT Texas Instruments

Please contact us for more photos of DAC7728SRTQT

Part Number	DAC7728SRTQT
Manufacturer	Texas Instruments
Quantity in stock	637150 Pieces
Market Price	-
Our Better Price	Send by email: [email protected]
Delivery Time	1 day (can ship today)
Description	DAC 8-CH Resistor-String 12-bit 56-Pin VQFN EP T R
Category	Data Conversion IC
Family	DAC
ROHS Compliant	Yes
MSL Level	DAC7728SRTQT
Datasheet download	DAC7728SRTQT.pdf

Request Quotation for DAC7728SRTQT

DAC7728SRTQT Specifications

Part Number	DAC7728SRTQT
MSL Level	3
Supplier Package	VQFN EP
Minimum Dual Supply Voltage	±4.5 V
Full Scale Error	±1 LSB
Typical Single Supply Voltage	30.5\|33.5 V
Typical Dual Supply Voltage	±15.5\|±17 V
Output Type	Voltage
Voltage Reference	External
Integral Nonlinearity Error	±1 LSB
Output Polarity	Unipolar\|Bipolar
Maximum Dual Supply Voltage	±18 V
Rad Hard	No
Minimum Single Supply Voltage	9 V
Number of Outputs per Chip	8
Number of DAC Channels	8
Max Processing Temp	260
Pin Count	56
Resolution	12 Bit
Digital Supply Support	Yes
Mounting	Surface Mount
Power Supply Type	Single\|Dual
Maximum Settling Time	10 us
Architecture	Resistor-String
Lead Finish	Gold
Digital Interface Type	Parallel
Operating Temperature	-40 to 105 °C
Product Dimensions	8 x 8 x 0.9 mm
Maximum Single Supply Voltage	36 V
Package	56VQFN EP
Replacement Part Number	PART-DAC7728SRTQT
Weight	Contact us
Country of Origin	-

Image	Part Number and Brand	Brief Description and PDF Datasheet
	MAX536AEPE+ Maxim Integrated	DAC 4-CH R-2R 12-bit 16-Pin PDIP N Download PDF datasheet for MAX536AEPE+.pdf
	MAX5134AGUE+ Maxim Integrated	DAC 4-CH Resistor-String 16-bit 16-Pin TSSOP Download PDF datasheet for MAX5134AGUE+.pdf
	DAC0802LCMX NOPB Texas Instruments	DAC 1-CH Current Steering 8-bit 16-Pin SOIC N T R Download PDF datasheet for DAC0802LCMX NOPB.pdf
	DAC8554IPWR Texas Instruments	DAC 4-CH Resistor-String 16-bit 16-Pin TSSOP T R Download PDF datasheet for DAC8554IPWR.pdf
	MAX5123BEEE+T Maxim Integrated	DAC 1-CH R-2R 12-bit 16-Pin QSOP T R Download PDF datasheet for MAX5123BEEE+T.pdf
	DAC8564ICPWR Texas Instruments	DAC 4-CH Resistor-String 16-bit 16-Pin TSSOP T R Download PDF datasheet for DAC8564ICPWR.pdf
	DAC161P997CISQ NOPB Texas Instruments	DAC 1-CH Delta-Sigma 16-bit 16-Pin LLP EP T R Download PDF datasheet for DAC161P997CISQ NOPB.pdf

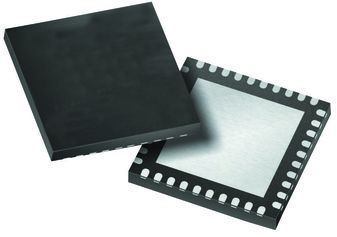

	DAC8760IRHAR Texas Instruments	DAC 1-CH Resistor-String 16-bit 40-Pin VQFN EP T R Download PDF datasheet for DAC8760IRHAR.pdf
