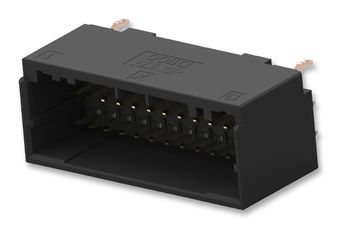

Please contact us for more photos of 178327-2
| Part Number | 178327-2 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 567210 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Power M 16 POS 3.81mm Solder ST Thru-Hole 16 Terminal 1 Port Tube |
| Category | Connectors |
| Family | Connector Power |
| ROHS Compliant | Yes |
| MSL Level | 178327-2 |
| Datasheet download |  178327-2.pdf |
| Part Number | 178327-2 |
|---|---|
| Termination Method | Solder |
| Number of Contacts | 16 |
| Max Processing Temp | 240|260|265 |
| Body Orientation | Straight |
| Gender | M |
| Mounting | Through Hole |
| Number of Ports | 1 |
| Product Dimensions | 40.67 x 14.43 x 21.6 mm |
| Number of Terminals | 16 |
| Family Name | Dynamic Series Wire-Applied Connectors |
| Contact Plating | Gold Over Nickel |
| Housing Material | Polyester |
| Rad Hard | No |
| Contact Material | Copper Alloy |
| Lead Finish | Gold |
| Pitch | 3.81 mm |
| Operating Temperature | -55 to 105 °C |
| Type | Power |
| Product Depth | 14.43 mm |
| Product Height | 21.6 mm |
| Product Length | 40.67 mm |
| Replacement Part Number | PART-178327-2 |
| Weight | Contact us |
| Country of Origin | - |
