1658647-1 TE Connectivity

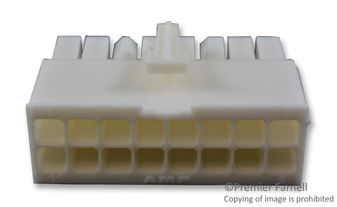

1658647-1 Images

Please contact us for more photos of 1658647-1

Part Number	1658647-1
Manufacturer	TE Connectivity
Quantity in stock	758200 Pieces
Market Price	-
Our Better Price	Send by email: [email protected]
Delivery Time	1 day (can ship today)
Description	Conn Housing PL 15 POS 2.76mm Crimp ST Bulk
Category	Connectors
Family	Connector Discrete Wire Housing
ROHS Compliant	Yes
MSL Level	1658647-1
Datasheet download	1658647-1.pdf

Request Quotation for 1658647-1

1658647-1 Specifications

Part Number	1658647-1
Number of Rows	2
Gender	PL
Product Dimensions	39.52 x 38.98 x 12.92 mm
Maximum Voltage Rating	250
Operating Temperature	-55 to 105 °C
Housing Material	Nylon
Number of Contacts	15
Type	Housing
Body Orientation	Straight
Pitch	2.76 mm
Housing Color	Black
Product Depth	38.98 mm
Product Height	12.92 mm
Product Length	39.52 mm
Replacement Part Number	PART-1658647-1
Weight	Contact us
Country of Origin	-
