1658610-2 TE Connectivity

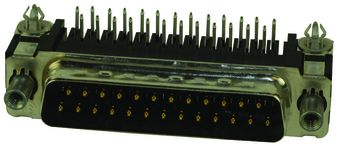

1658610-2 Images

Please contact us for more photos of 1658610-2

Part Number 1658610-2
Manufacturer TE Connectivity
Quantity in stock 730680 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Conn D-Subminiature SKT 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port
Category Connectors
Family Connector D-Subminiature
ROHS Compliant Yes
MSL Level 1658610-2
Datasheet download 1658610-2.pdf
Request Quotation for 1658610-2

1658610-2 Specifications

Part Number 1658610-2
Product Dimensions 53.09 x 12.59 x 18.61 mm
Termination Method IDT
Body Orientation Right Angle
Pitch 2.76 mm
Lead Finish Tin
Contact Material Phosphor Bronze
Gender SKT
Contact Plating Gold Over Nickel
Rad Hard No
Housing Material Thermoplastic
Mounting Cable Mount
Operating Temperature -55 to 105 °C
Product Depth 12.59 mm
Product Height 18.61 mm
Product Length 53.09 mm
Replacement Part Number PART-1658610-2
Weight Contact us
Country of Origin -
