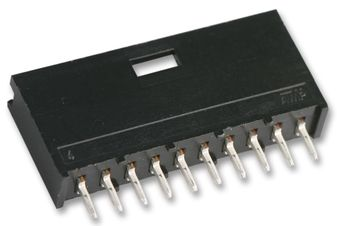

Please contact us for more photos of 103673-7
| Part Number | 103673-7 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 643810 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Tube |
| Category | Connectors |
| Family | Connector Headers and PCB Receptacles |
| ROHS Compliant | Yes |
| MSL Level | 103673-7 |
| Datasheet download |  103673-7.pdf |
| Part Number | 103673-7 |
|---|---|
| Product Dimensions | 22.86 x 13.59 x 6.99 mm |
| Pitch | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Plating | Gold Over Nickel |
| Rad Hard | No |
| Termination Method | Solder |
| Family Name | AMPMODU Board-to-Boad & Wire-to-Board Connectors |
| Max Processing Temp | 240 |
| Contact Material | Brass |
| Body Orientation | Right Angle |
| Operating Temperature | -65 to 105 °C |
| Gender | HDR |
| Housing Color | Black |
| Lead Finish | Tin/Lead |
| Mounting | Through Hole |
| Product Depth | 13.59 mm |
| Product Height | 6.99 mm |
| Product Length | 22.86 mm |
| Replacement Part Number | PART-103673-7 |
| Weight | Contact us |
| Country of Origin | - |
