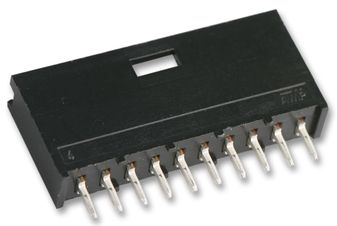

Please contact us for more photos of 1-292251-3
| Part Number | 1-292251-3 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 579540 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Shrouded Header HDR 13 POS 2mm Solder ST Thru-Hole |
| Category | Connectors |
| Family | Connector Headers and PCB Receptacles |
| ROHS Compliant | Yes |
| MSL Level | 1-292251-3 |
| Datasheet download |  1-292251-3.pdf |
| Part Number | 1-292251-3 |
|---|---|
| Contact Material | Brass |
| Contact Plating | Pre-Tin |
| Rad Hard | No |
| Lead Finish | Tin |
| Max Processing Temp | 240|260|265 |
| Termination Method | Solder |
| Body Orientation | Straight |
| Gender | HDR |
| Pitch | 2 mm |
| Operating Temperature | -30 to 105 °C |
| Housing Material | Nylon 66 |
| Housing Color | Natural |
| Mounting | Through Hole |
| Product Dimensions | 27.8 x 5.8 x 6.8 mm |
| Product Depth | 5.8 mm |
| Product Height | 6.8 mm |
| Product Length | 27.8 mm |
| Replacement Part Number | PART-1-292251-3 |
| Weight | Contact us |
| Country of Origin | - |
