Please contact us for more photos of MNR18E0APJ103
| Part Number | MNR18E0APJ103 |
|---|---|
| Manufacturer | ROHM |
| Quantity in stock | 541670 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film Network 10K Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 16-Pin 1506 Convex 1506 SMD Paper T R |
| Category | Resistor |
| Family | Resistor Networks and Arrays |
| ROHS Compliant | Yes |
| MSL Level | MNR18E0APJ103 |
| Datasheet download |  MNR18E0APJ103.pdf |
| Part Number | MNR18E0APJ103 |
|---|---|
| Termination Style | Convex |
| Termination Material | Nickel |
| Supplier Package | 1506 |
| Product Dimensions | 3.8 x 1.6 x 0.45 |
| Power Rating per Resistor | 1/16 W |
| Resistance Value | 10 kOhm |
| Max Processing Temp | 260 |
| Case Style | Molded |
| Temperature Coefficient | ±200 ppm/°C |
| Terminal Pitch | 0.5 mm |
| Tolerance | 5 % |
| Rad Hard | No |
| Pin Count | 16 |
| Case Size | 1506 |
| Technology | Thick Film |
| Package Type | SMD |
| Mounting | Surface Mount |
| Operating Temperature | -55 to 125 °C |
| Lead Finish | Tin Over Nickel |
| Product Depth | 1.6 mm |
| Product Height | 0.45 mm |
| Product Length | 3.8 mm |
| Product Weight | 8.9 mg |
| Replacement Part Number | PART-MNR18E0APJ103 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Panasonic | Res Thick Film Array 22 Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 8-Pin 0804(4 X 0402) Convex SMD Punched Carrier T R Download PDF datasheet for EXB-28V220JX.pdf |
|
Panasonic | Res Thick Film NET 10K Ohm 5% \u00b1200ppm \u00b0C BUS Molded 10-Pin 1206 Concave SMD Punched Carrier T R Download PDF datasheet for EXBD10C103J.pdf |
|
Panasonic | Res Thick Film Array 120 Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 8-Pin 0804(4 X 0402) Convex SMD Punched Carrier T R Download PDF datasheet for EXB28V121JX.pdf |
|
Bourns | Res Thick Film Array 22 Ohm 5% 1 8W \u00b1200ppm \u00b0C ISOL Molded 4-Pin Concave 0606 SMD Paper T R Download PDF datasheet for CAT16-220J2Z2.pdf |
|
ROHM | Res Thin Film NET 22 Ohm 5% 1 4W \u00b1200ppm \u00b0C ISOL Molded 16-Pin 1506(8 X 0602) Convex SMD Paper T R Download PDF datasheet for MNR18E0APJ220.pdf |
|

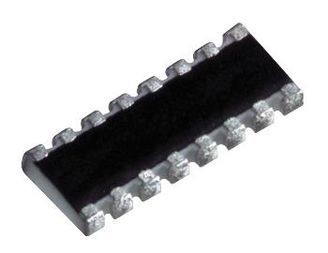

Panasonic | Res Thick Film Array 4.7K Ohm 5% 1 4W \u00b1200ppm \u00b0C ISOL Molded 16-Pin 1506(8 X 0402) Convex SMD Punched Carrier T R Download PDF datasheet for EXB2HV472JV.pdf |
|
