Please contact us for more photos of MCR03EZPFX2702
| Part Number | MCR03EZPFX2702 |
|---|---|
| Manufacturer | ROHM |
| Quantity in stock | 872460 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film 0603 27K Ohm 1% 1 10W \u00b1100ppm \u00b0C Molded SMD SMD Paper T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | MCR03EZPFX2702 |
| Datasheet download |  MCR03EZPFX2702.pdf |
| Part Number | MCR03EZPFX2702 |
|---|---|
| Mounting | Surface Mount |
| Resistance Value | 27 kOhm |
| Max Processing Temp | 260|265 |
| Operating Temperature | -55 to 155 °C |
| Package Type | SMD |
| Temperature Coefficient | ±100 ppm/°C |
| Case Size | 0603 |
| Lead Finish | Tin |
| Power Rating | 0.1 W |
| Tolerance | 1 % |
| Failure Rate | |
| Military Standard | |
| Product Dimensions | 1.6 x 0.8 x 0.45 mm |
| Rad Hard | No |
| Case Style | Molded |
| Type | Thick Film |
| Product Depth | 0.8 mm |
| Product Height | 0.45 mm |
| Product Length | 1.6 mm |
| Product Weight | 2.12 mg |
| Replacement Part Number | PART-MCR03EZPFX2702 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Panasonic | Res Thick Film 0201 475 Ohm 1% 1 20W \u00b1200ppm \u00b0C Molded SMD SMD Pressed Carrier T R Download PDF datasheet for ERJ1GEF4750C.pdf |
|
Vishay | Res Thick Film 0402 374K Ohm 1% 1 16W \u00b1100ppm \u00b0C Molded SMD SMD Paper T R Download PDF datasheet for CRCW0402374KFKED.pdf |
|
Vishay | Res Thick Film 0603 27.4 Ohm 1% 1 10W \u00b1100ppm \u00b0C Molded SMD SMD Paper T R Download PDF datasheet for CRCW060327R4FKEA.pdf |
|
Vishay | Res Thin Film 0102(0805) 22 Ohm 1% 1 5W \u00b150ppm \u00b0C Conformal Melf SMD Blister T R Download PDF datasheet for MMU01020C2209FB300.pdf |
|
Panasonic | Res Thick Film 0603 82.5K Ohm 1% 1 10W \u00b1100ppm \u00b0C Molded SMD SMD Punched Carrier T R Download PDF datasheet for ERJ-3EKF8252V.pdf |
|

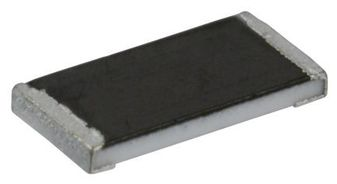

Bourns | Res Thick Film 0603 1.5K Ohm 5% 1 10W \u00b1200ppm \u00b0C Molded SMD SMD Paper Tape on Plastic Reel Download PDF datasheet for CR0603-JW-152ELF.pdf |
|
