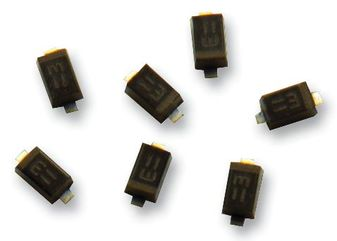

Please contact us for more photos of RS07D-M-08
| Part Number | RS07D-M-08 |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 229740 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Fast Rectifier 200V 1.4A 2-Pin DO-219AB T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | RS07D-M-08 |
| Datasheet download |  RS07D-M-08.pdf |
| Part Number | RS07D-M-08 |
|---|---|
| Pin Count | 2 |
| Rad Hard | No |
| Mounting | Surface Mount |
| Configuration | Single |
| Peak Reverse Repetitive Voltage | 200 V |
| Peak Average Forward Current | 1.4@Ttp=65C A |
| Max Processing Temp | 260 |
| MSL Level | 1 |
| Peak Non-Repetitive Surge Current | 30 A |
| Screening Level | Automotive |
| Peak Reverse Recovery Time | 150 ns |
| Operating Temperature | -55 to 150 °C |
| Peak Forward Voltage | [email protected] V |
| Peak Reverse Current | 10 uA |
| Supplier Package | DO-219AB |
| Product Dimensions | 2.9(Max) x 1.9(Max) x 1.08(Max) |
| Type | Fast Rectifier |
| Package | 2DO-219AB |
| Replacement Part Number | PART-RS07D-M-08 |
| Weight | Contact us |
| Country of Origin | - |
