Please contact us for more photos of RB520CM-60T2R
| Part Number | RB520CM-60T2R |
|---|---|
| Manufacturer | ROHM |
| Quantity in stock | 332490 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Schottky 60V 0.1A 2-Pin SOD-923 Emboss T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | RB520CM-60T2R |
| Datasheet download |  RB520CM-60T2R.pdf |
| Part Number | RB520CM-60T2R |
|---|---|
| Mounting | Surface Mount |
| Rad Hard | No |
| Type | Schottky Diode |
| Supplier Package | SOD-923 |
| Configuration | Single |
| Moisture Sensitivity Level | 1 |
| Pin Count | 2 |
| Peak Non-Repetitive Surge Current | 0.5 |
| Peak Reverse Current | 3@60V |
| Peak Forward Voltage | 0.47@15mA |
| Lead Finish | Matte Tin |
| Maximum Processing Temperature | 260 |
| Peak Reverse Repetitive Voltage | 60 |
| Peak Average Forward Current | 0.1 |
| Operating Temperature | -55 to 150 °C |
| Package Dimensions | 0.86 x 0.6 x 0.37 |
| Package | 2SOD-923 |
| Replacement Part Number | PART-RB520CM-60T2R |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|

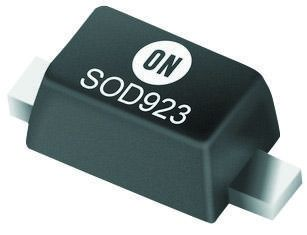

ON Semiconductor | Diode Zener Single 2.53V 4% 200mW 2-Pin SOD-923 T R Download PDF datasheet for NZ9F2V4ST5G.pdf |
|
Fairchild Semiconductor | Diode Zener Single 10V 5% 350mW 3-Pin SOT-23 T R Download PDF datasheet for MMBZ5240B.pdf |
|
Nexperia | Diode Schottky 10V 2A 2-Pin SOD-323 T R Download PDF datasheet for PMEG1020EA,115.pdf |
|
Vishay | Diode Small Signal Schottky 30V 0.2A 2-Pin Mini-MELF SOD-80 T R Download PDF datasheet for BAS85-GS08.pdf |
|
Infineon | Diode Schottky 40V 0.12A 4-Pin(3+Tab) SOT-143 T R Download PDF datasheet for BAS 40-07 E6327.pdf |
|
Vishay | Diode Schottky 60V 1A 2-Pin Micro SMP T R Download PDF datasheet for MSS1P6-M3 89A.pdf |
|
Diodes Incorporated | Diode Zener Single 47V 6% 370mW 2-Pin SOD-123 T R Download PDF datasheet for BZT52C47-7-F.pdf |
|

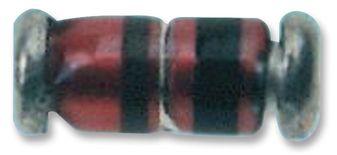

Vishay | Diode Zener Single 18.55V 2% 500mW 2-Pin DO-35 Ammo Download PDF datasheet for TZX18C-TAP.pdf |
|
