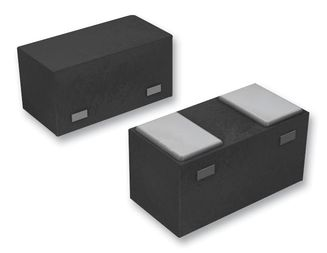

Please contact us for more photos of NSR0240P2T5G
| Part Number | NSR0240P2T5G |
|---|---|
| Manufacturer | ON Semiconductor |
| Quantity in stock | 427900 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Schottky 40V 0.2A 2-Pin SOD-923 T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | NSR0240P2T5G |
| Datasheet download |  NSR0240P2T5G.pdf |
| Part Number | NSR0240P2T5G |
|---|---|
| Peak Reverse Current | 5 uA |
| Lead Finish | Matte Tin |
| Supplier Package | SOD-923 |
| MSL Level | 1 |
| Mounting | Surface Mount |
| Peak Reverse Repetitive Voltage | 40 V |
| Pin Count | 2 |
| Peak Average Forward Current | 0.2 A |
| Peak Non-Repetitive Surge Current | 2 A |
| Max Processing Temp | 260 |
| Operating Temperature | -55 to 150 °C |
| Type | Schottky Diode |
| Rad Hard | No |
| Configuration | Single |
| Peak Forward Voltage | 0.6 V |
| Product Dimensions | 0.8 x 0.6 x 0.37 mm |
| Package | 2SOD-923 |
| Replacement Part Number | PART-NSR0240P2T5G |
| Weight | Contact us |
| Country of Origin | - |
