JTX1N5806 Semtech

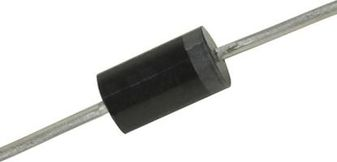

JTX1N5806 Images

Please contact us for more photos of JTX1N5806

Part Number	JTX1N5806
Manufacturer	Semtech
Quantity in stock	758860 Pieces
Market Price	-
Our Better Price	Send by email: [email protected]
Delivery Time	1 day (can ship today)
Description	Diode Superfast Rectifier 150V 2.5A 2-Pin Case G111
Category	Discrete Semiconductor
Family	Diode
ROHS Compliant	Yes
MSL Level	JTX1N5806
Datasheet download	JTX1N5806.pdf

Request Quotation for JTX1N5806

JTX1N5806 Specifications

Part Number	JTX1N5806
Peak Non-Repetitive Surge Current	35 A
Configuration	Single
Rad Hard	No
Mounting	Through Hole
Peak Average Forward Current	2.5@Ta=75C A
Operating Temperature	-65 to 175 °C
Type	Superfast Rectifier Diode
Supplier Package	Case G111
Peak Forward Voltage	0.87@1A V
Peak Reverse Recovery Time	25 ns
Peak Reverse Repetitive Voltage	150 V
Pin Count	2
Peak Reverse Current	1@150V uA
Package Dimensions	2.16 x 6.35 mm
Package	2Case G111
Replacement Part Number	PART-JTX1N5806
Weight	Contact us
Country of Origin	-
