Please contact us for more photos of PA1211.221NLT
| Part Number | PA1211.221NLT |
|---|---|
| Manufacturer | Pulse |
| Quantity in stock | 321650 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Ind Power Bead Wirewound 220nH 20% 25A T R |
| Category | Inductor |
| Family | Inductor Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | PA1211.221NLT |
| Datasheet download |  PA1211.221NLT.pdf |
| Part Number | PA1211.221NLT |
|---|---|
| Technology | Wirewound |
| Maximum DC Resistance | 550 uOhm |
| Rad Hard | No |
| Tolerance | 20 % |
| Operating Temperature | -40 to 130 °C |
| Product Dimensions | 10.2 x 7 x 4.96 mm |
| Package/Case | 10.2 X 7 X 4.96 |
| Type | Power Bead |
| Product Depth | 7 mm |
| Product Height | 4.96 mm |
| Product Length | 10.2 mm |
| Replacement Part Number | PART-PA1211.221NLT |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|

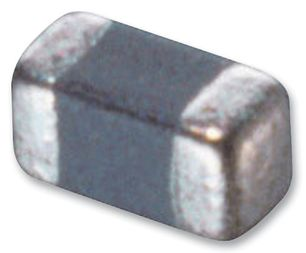

Murata Manufacturing | Ind Chip Bead 1KOhm 25% 100MHz Ferrite 250mA 0402 Paper T R Download PDF datasheet for BLM15HG102SN1D.pdf |
|
Vishay | Ind High Frequency Wirewound 1uH 5% 25.2MHz 35Q-Factor Ferrite 180mA 0805 T R Download PDF datasheet for IMC0805ER1R0J01.pdf |
|
Vishay | Ind Chip Molded Wirewound 220uH 10% 796KHz 15Q-Factor Ferrite 50mA 1210 T R Download PDF datasheet for IMC1210ER221K.pdf |
|
Pulse | Ind Common Mode Choke 96uH -35% to 30% 6A T R Download PDF datasheet for PA2746NLT.pdf |
|

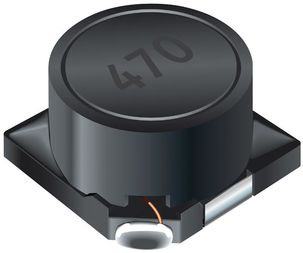

Bourns | Ind Power Shielded 18uH 20% 2.52MHz 13Q-Factor Ferrite 5.5A T R Download PDF datasheet for SRR1210A-180M.pdf |
|
