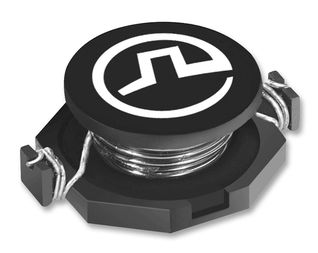

Please contact us for more photos of P1167.632NL
| Part Number | P1167.632NL |
|---|---|
| Manufacturer | Pulse |
| Quantity in stock | 727340 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Ind Power Chip Shielded Drum Core 6.3uH 30% 100KHz 2.4A |
| Category | Inductor |
| Family | Inductor Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | P1167.632NL |
| Datasheet download |  P1167.632NL.pdf |
| Part Number | P1167.632NL |
|---|---|
| Tolerance | 30 % |
| Operating Temperature | -40 to 130 °C |
| Type | Power Chip |
| Maximum Self Resonant Frequency | 36 MHz |
| Maximum DC Current | 2.4 A |
| Pin Count | 2 |
| Protection Style | Shielded |
| Maximum DC Resistance | 35 MOhm |
| Rad Hard | No |
| Package/Case | 7.54(Max) X 7.54(Max) X 4.5(Max) |
| Inductance | 6.3 uH |
| Test Frequency | 100 kHz |
| Package Dimensions | 7.54 x 7.54 x 4.5 mm |
| Technology | Drum Core |
| Product Depth | 7.54(Max) mm |
| Product Height | 4.5(Max) mm |
| Product Length | 7.54(Max) mm |
| Replacement Part Number | PART-P1167.632NL |
| Weight | Contact us |
| Country of Origin | - |
