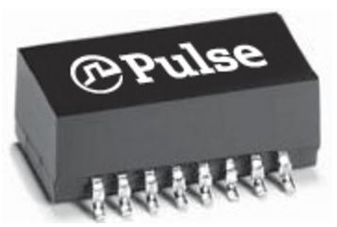

Please contact us for more photos of HM1225NL
| Part Number | HM1225NL |
|---|---|
| Manufacturer | Pulse |
| Quantity in stock | 649780 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Telecom Transformer 1:1 1650Vrms -1.5dB@1MHz to 50MHz Surface Mount |
| Category | Transformer |
| Family | Telecom Transformer |
| ROHS Compliant | Yes |
| MSL Level | HM1225NL |
| Datasheet download |  HM1225NL.pdf |
| Part Number | HM1225NL |
|---|---|
| Transformer Type | 100Base-TX Single Port Transformer |
| Minimum Return Loss | -12@80MHz dB |
| Minimum Crosstalk | -30@100MHz dB |
| Turns Ratio | 1:1 |
| Lead Style | Gull Wing |
| Mounting | Surface Mount |
| Maximum Processing Temperature | 245 °C |
| Maximum OCL Inductance | 0.2 mH |
| Rad Hard | No |
| Maximum Insertion Loss | -1.5@1MHz to 50MHz dB |
| Pin Count | 16 |
| Supplier Package | DIP SMD |
| Package Type | DIP SMD |
| Maximum Isolation Voltage | 1650 Vrms |
| Operating Temperature | -40 to 95 °C |
| Moisture Sensitivity Level | 1 |
| Package Dimensions | 12.7 x 7.1 x 5.8 mm |
| Product Depth | 7.7 mm |
| Product Height | 5.8 mm |
| Product Length | 12.7 mm |
| Replacement Part Number | PART-HM1225NL |
| Weight | Contact us |
| Country of Origin | - |
