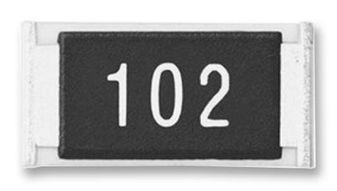

Please contact us for more photos of ERJ8ENF22R0V
| Part Number | ERJ8ENF22R0V |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 379540 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film 1206 22 Ohm 1% 1 4W \u00b1100ppm \u00b0C Molded SMD SMD Punched Carrier T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | ERJ8ENF22R0V |
| Datasheet download |  ERJ8ENF22R0V.pdf |
| Part Number | ERJ8ENF22R0V |
|---|---|
| Case Size | 1206 |
| Resistance Value | 22 Ohm |
| Case Style | Molded |
| Max Processing Temp | 260 |
| Rad Hard | No |
| Mounting | Surface Mount |
| Product Dimensions | 3.2 x 1.6 x 0.6 mm |
| Power Rating | 0.25 W |
| Lead Finish | Tin |
| Operating Temperature | -55 to 155 °C |
| Tolerance | 1 % |
| Temperature Coefficient | ±100 ppm/°C |
| Product Depth | 1.6 mm |
| Product Height | 0.6 mm |
| Product Length | 3.2 mm |
| Product Weight | 10 mg |
| Replacement Part Number | PART-ERJ8ENF22R0V |
| Weight | Contact us |
| Country of Origin | - |
