ERJ14NF1200U Panasonic

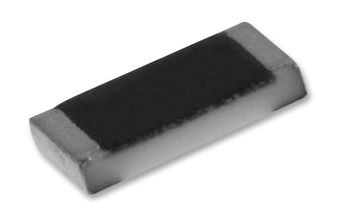

ERJ14NF1200U Images

Please contact us for more photos of ERJ14NF1200U

Part Number ERJ14NF1200U
Manufacturer Panasonic
Quantity in stock 567170 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Res Thick Film 1210 120 Ohm 1% 1 2W \u00b1100ppm \u00b0C Molded SMD SMD Embossed Carrier T R
Category Resistor
Family Resistor Fixed Single-Surface Mount
ROHS Compliant Yes
MSL Level ERJ14NF1200U
Datasheet download ERJ14NF1200U.pdf
Request Quotation for ERJ14NF1200U

ERJ14NF1200U Specifications

Part Number ERJ14NF1200U
Mounting Surface Mount
Operating Temperature -55 to 155 °C
Resistance Value 120 Ohm
Product Dimensions 3.2 x 2.5 x 0.6 mm
Tolerance 1 %
Temperature Coefficient ±100 ppm/°C
Lead Finish Tin
Power Rating 0.5 W
Case Style Molded
Rad Hard No
Case Size 1210
Max Processing Temp 260
Product Depth 2.5 mm
Product Height 0.6 mm
Product Length 3.2 mm
Product Weight 16 mg
Replacement Part Number PART-ERJ14NF1200U
Weight Contact us
Country of Origin -
