ERG2SJ223A Panasonic

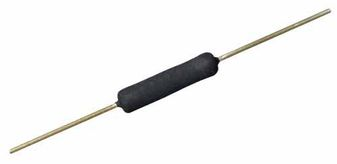

ERG2SJ223A Images

Please contact us for more photos of ERG2SJ223A

Part Number ERG2SJ223A
Manufacturer Panasonic
Quantity in stock 258840 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Res Metal Oxide 22K Ohm 5% 2W \u00b1350ppm \u00b0C Conformal AXL Thru-Hole
Category Resistor
Family Resistor Fixed Single-Through Hole
ROHS Compliant Yes
MSL Level ERG2SJ223A
Datasheet download ERG2SJ223A.pdf
Request Quotation for ERG2SJ223A

ERG2SJ223A Specifications

Part Number ERG2SJ223A
Product Dimensions 12 mm
Case Style Conformal
Termination Style Axial
Max Processing Temp 260
Power Rating 2 W
Tolerance 5 %
Mounting Through Hole
Resistance Value 22 kOhm
Rad Hard No
Lead Finish Tin
Temperature Coefficient ±350 ppm/°C
Operating Temperature -55 to 200 °C
Product Diameter 4 mm
Product Length 12 mm
Product Weight 660 mg
Replacement Part Number PART-ERG2SJ223A
Weight Contact us
Country of Origin -
