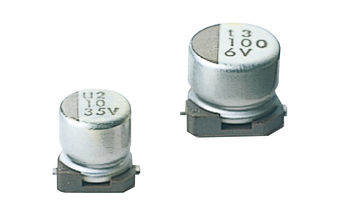

Please contact us for more photos of EEEHDV470XAP
| Part Number | EEEHDV470XAP |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 814360 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Aluminum 47uF 35V 20% (6.3 X 7.7mm) SMD 57mA 5000 hr 105\u00b0C T R |
| Category | Capacitors |
| Family | Capacitor Aluminum |
| ROHS Compliant | Yes |
| MSL Level | EEEHDV470XAP |
| Datasheet download |  EEEHDV470XAP.pdf |
| Part Number | EEEHDV470XAP |
|---|---|
| Mounting | Surface Mount |
| Construction | Cylindrical |
| Capacitance Value | 47 uF |
| Leakage Current | 16.45@2Min uA |
| Voltage(DC) | 35 V |
| Operating Temperature | -40 to 105 °C |
| Package/Case | 6.3 X 7.7 |
| Rad Hard | No |
| Max Processing Temp | 260 |
| Tolerance | 20 % |
| Ripple Current | 57 mA |
| Product Dimensions | 7.7 mm |
| Lead Finish | Tin/Bismuth |
| Product Diameter | 6.3 mm |
| Product Height | 7.7 mm |
| Replacement Part Number | PART-EEEHDV470XAP |
| Weight | Contact us |
| Country of Origin | - |
