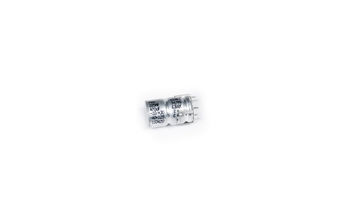

Please contact us for more photos of EEE-HD1H100P
| Part Number | EEE-HD1H100P |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 865320 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Aluminum 10uF 50V 20% (6.3 X 5.8mm) SMD 33mA 5000 hr 105\u00b0C T R |
| Category | Capacitors |
| Family | Capacitor Aluminum |
| ROHS Compliant | Yes |
| MSL Level | EEE-HD1H100P |
| Datasheet download |  EEE-HD1H100P.pdf |
| Part Number | EEE-HD1H100P |
|---|---|
| Lead Finish | Tin/Bismuth |
| Max Processing Temp | 250 |
| Voltage(DC) | 50 V |
| Package/Case | 6.3 X 5.8 |
| Rad Hard | No |
| Tolerance | 20 % |
| Leakage Current | 3@2Min uA |
| Ripple Current | 33 mA |
| Capacitance Value | 10 uF |
| Product Dimensions | 5.8 mm |
| Mounting | Surface Mount |
| Operating Temperature | -40 to 105 °C |
| Construction | Cylindrical |
| Product Diameter | 6.3 mm |
| Product Height | 5.8 mm |
| Replacement Part Number | PART-EEE-HD1H100P |
| Weight | Contact us |
| Country of Origin | - |
