LS M676-Q2R1-1 OSRAM Opto Semiconductors

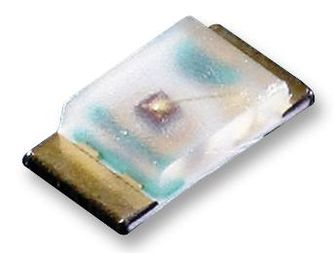

LS M676-Q2R1-1 Images

Please contact us for more photos of LS M676-Q2R1-1

Part Number	LS M676-Q2R1-1
Manufacturer	OSRAM Opto Semiconductors
Quantity in stock	810940 Pieces
Market Price	-
Our Better Price	Send by email: [email protected]
Delivery Time	1 day (can ship today)
Description	LED Uni-Color Red 0.38lm 645nm Chip LED 2-Pin SMD T R
Category	Lighting
Family	LEDs
ROHS Compliant	Yes
MSL Level	LS M676-Q2R1-1
Datasheet download	LS M676-Q2R1-1.pdf

Request Quotation for LS M676-Q2R1-1

LS M676-Q2R1-1 Specifications

Part Number	LS M676-Q2R1-1
Product Dimensions	2.1(Max) x 1.5(Max) x 1.25(Max)
Mounting Orientation	Top Mount
Lens Dimensions	1.5 x 1 x 0.8(Max) mm
Lens Appearance	Colorless Non Diffused
Pin Count	2
Peak Wavelength	645 nm
Rad Hard	No
Supplier Package	SMD
MSL Level	2
Screening Level	Extended Industrial
Reverse Voltage	12 V
Viewing Angle	120 °
Mounting	Surface Mount
Max Processing Temp	260
Operating Temperature	-40 to 100 °C
Package	2SMD
Replacement Part Number	PART-LS M676-Q2R1-1
Weight	Contact us
Country of Origin	-
