| Part Number | ACPL-K49T-500E |
|---|---|
| Manufacturer | Broadcom |
| Quantity in stock | 728530 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 8-Pin SO T R |
| Category | Optoelectronics |
| Family | OptoCouplers |
| ROHS Compliant | Yes |
| MSL Level | ACPL-K49T-500E |
| Datasheet download |  ACPL-K49T-500E.pdf |
| Part Number | ACPL-K49T-500E |
|---|---|
| Rad Hard | No |
| Mounting | Surface Mount |
| Number of Channels per Chip | 1 |
| Maximum Power Dissipation | 600 mW |
| Supplier Package | SO |
| Minimum Isolation Voltage | 5000 Vrms |
| Operating Temperature | -40 to 125 °C |
| Pin Count | 8 |
| Output Type | DC |
| Maximum Reverse Voltage | 5 V |
| Maximum Current Transfer Ratio @ Current | 100 % |
| Input Type | DC |
| Product Dimensions | 5.85 x 6.81 x 3.18 mm |
| Max Processing Temp | 260 |
| Minimum Forward Voltage | 1.4 V |
| Maximum Forward Voltage | 1.7 V |
| Typical Forward Voltage | 1.5 V |
| Maximum Input Current | 20 mA |
| Maximum Collector Current | 8 mA |
| Package | 8SO |
| Replacement Part Number | PART-ACPL-K49T-500E |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Broadcom | OptoCoupler 16-Pin SOIC T R Download PDF datasheet for HCPL-788J-500E.pdf |
|
Broadcom | Optocoupler Logic-Out Push-Pull Logic, Buffer-IN 1-CH 8-Pin SOIC Tube Download PDF datasheet for HCPL-0720-060E.pdf |
|

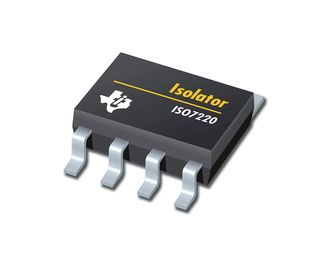

Texas Instruments | OptoCoupler Buffer-OUT 2-CH 8-Pin SOIC T R Download PDF datasheet for ISO7220AQDRQ1.pdf |
|
