Si7336ADP-T1-E3 Vishay

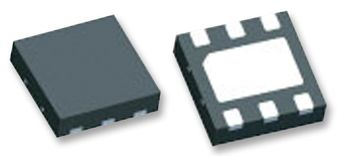

Si7336ADP-T1-E3 Images

Please contact us for more photos of Si7336ADP-T1-E3

Part Number Si7336ADP-T1-E3
Manufacturer Vishay
Quantity in stock 359810 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Trans MOSFET N-CH 30V 18A 8-Pin PowerPAK SO T R
Category Discrete Semiconductor
Family Transistor
ROHS Compliant Yes
MSL Level Si7336ADP-T1-E3
Datasheet download Si7336ADP-T1-E3.pdf
Request Quotation for Si7336ADP-T1-E3

Si7336ADP-T1-E3 Specifications

Part Number Si7336ADP-T1-E3
Typical Turn-Off Delay Time 90 ns
Operating Temperature -55 to 150 °C
Rad Hard No
Max Processing Temp 260
Maximum Continuous Drain Current 18 A
Channel Mode Enhancement
Lead Finish Matte Tin
Mounting Surface Mount
Maximum Drain Source Voltage 30 V
Supplier Package PowerPAK SO
Channel Type N
Product Dimensions 4.9 x 5.89 x 1.04 mm
Maximum Gate Source Voltage ±20 V
MSL Level 1
Pin Count 8
RDS-on 3@10V mOhm
Typical Rise Time 16 ns
Typical Fall Time 32 ns
Typical Turn-On Delay Time 24 ns
Package 8PowerPAK SO
Replacement Part Number PART-Si7336ADP-T1-E3
Weight Contact us
Country of Origin -
