Part Number | 788000001 |
---|---|
Manufacturer | Molex |
Quantity in stock | 766360 Pieces |
Market Price | - |
Our Better Price | Send by email: [email protected] |
Delivery Time | 1 day (can ship today) |
Description | Conn Micro SIM HDR 6 POS 1.4mm Solder ST SMD Embossed T R 0.5A Contact |
Category | Connectors |
Family | Connector Memory Card |
ROHS Compliant | Yes |
MSL Level | 788000001 |
Datasheet download | ![]() |
Part Number | 788000001 |
---|---|
Maximum Current Rating | 0.5/Contact A |
Contact Material | Phosphor Bronze |
Termination Method | Solder |
Contact Plating | Gold Over Nickel |
Housing Material | Liquid Crystal Polymer |
Product Dimensions | 16.96 x 13.69 x 1.4 |
Body Orientation | Straight |
Lead Finish | Matte Tin Over Nickel |
Operating Temperature | -30 to 85 °C |
Pin Count | 6 |
Number of Contacts | 6 |
Pitch | 1.4 mm |
Type | Micro SIM Card |
Gender | HDR |
Mounting | Surface Mount |
Rad Hard | No |
Max Processing Temp | 260 |
Number of Rows | 1 |
Product Depth | 13.69 mm |
Product Height | 1.4 mm |
Product Length | 16.96 mm |
Replacement Part Number | PART-788000001 |
Weight | Contact us |
Country of Origin | - |
Image | Part Number and Brand | Brief Description and PDF Datasheet |
---|---|---|
Molex | SCALABLE SIM CONNECTOR 2.0 MM Download PDF datasheet for 47019-2002.pdf |
|
Molex | Conn SIM Card SKT 8 POS 2.54mm Solder RA SMD Embossed T R 0.5A Download PDF datasheet for 1510320001.pdf |
|
Molex | Conn Micro SD Card SKT 8 POS 1.1mm Solder RA SMD Embossed T R 0.5A Contact Download PDF datasheet for 5025700893.pdf |
|
Molex | Conn Micro SD Card HDR 8 POS 1.1mm Solder RA SMD Embossed T R 0.5A Contact Download PDF datasheet for 0473521001.pdf |
|

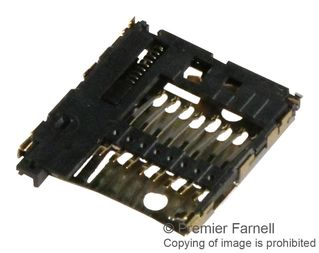

TE Connectivity | MEMORY CARD CONNECTORS FOR MOBILE DEVICE Download PDF datasheet for 2201778-1.pdf |
|
