522711569 Molex

522711569 Images

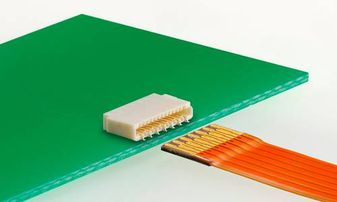

Please contact us for more photos of 522711569

Part Number 522711569
Manufacturer Molex
Quantity in stock 556780 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Conn FPC Connector SKT 15 POS 1mm Solder RA SMD Embossed T R
Category Connectors
Family Connector FFC-FPC
ROHS Compliant Yes
MSL Level 522711569
Datasheet download 522711569.pdf
Request Quotation for 522711569

522711569 Specifications

Part Number 522711569
Housing Color Natural
Termination Method Solder
Mounting Surface Mount
Contact Gender SKT
Lead Finish Tin
Body Orientation Right Angle
Housing Material Nylon 46
Product Dimensions 22 x 6.7 x 3 mm
Pitch 1 mm
Contact Plating Gold Over Nickel
Contact Material Phosphor Bronze
Operating Temperature -20 to 85 °C
Product Depth 6.7 mm
Product Height 3 mm
Product Length 22 mm
Replacement Part Number PART-522711569
Weight Contact us
Country of Origin -
