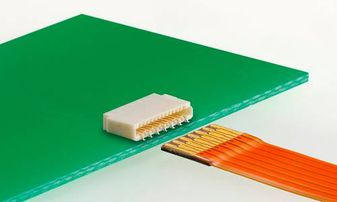

Please contact us for more photos of 522070760

Part Number 522070760
Manufacturer Molex
Quantity in stock 759750 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Conn FFC FPC Connector SKT 7 POS 1mm Solder RA SMD Embossed T R
Category Connectors
Family Connector FFC-FPC
ROHS Compliant Yes
MSL Level 522070760
Datasheet download 522070760.pdf
Request Quotation for 522070760

522070760 Specifications

Part Number 522070760
Product Dimensions 14.5 x 7.5 x 2.7 mm
Termination Method Solder
Mounting Surface Mount
Lead Finish Tin
Contact Gender SKT
Body Orientation Right Angle
Operating Temperature -20 to 85 °C
Pitch 1 mm
Housing Material Nylon 4/6
Contact Material Phosphor Bronze
Contact Plating Gold Over Nickel
Product Depth 7.5 mm
Product Height 2.7 mm
Product Length 14.5 mm
Replacement Part Number PART-522070760
Weight Contact us
Country of Origin -
