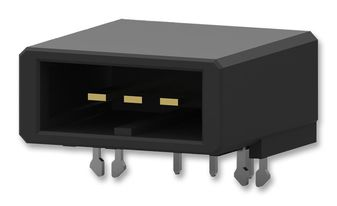

Please contact us for more photos of 172042-0401
| Part Number | 172042-0401 |
|---|---|
| Manufacturer | Molex |
| Quantity in stock | 115960 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Shrouded Header HDR 4 POS 7.49mm Solder ST Thru-Hole Tray |
| Category | Connectors |
| Family | Connector Power |
| ROHS Compliant | Yes |
| MSL Level | 172042-0401 |
| Datasheet download |  172042-0401.pdf |
| Part Number | 172042-0401 |
|---|---|
| Gender | HDR |
| Contact Plating | Silver Over Nickel |
| Contact Material | Copper Alloy |
| Mounting | Through Hole |
| Number of Contacts | 4 |
| Operating Temperature | -40 to 125 °C |
| Pitch | 7.49 |
| Housing Material | Liquid Crystal Polymer |
| Maximum Voltage Rating | 600 |
| Rad Hard | No |
| Body Orientation | Straight |
| Maximum Contact Resistance | 2.5 |
| Lead Finish | Matte Tin Over Nickel |
| Maximum Processing Temperature | 260 |
| Type | Shrouded Header |
| Pin Count | 4 |
| Maximum Current Rating | 30/Contact |
| Package Dimensions | 36.07 x 11.53 x 14.76 |
| Number of Ports | 1 |
| Housing Color | Black |
| Termination Method | Solder |
| Number of Rows | 1 |
| Product Depth | 11.53 |
| Product Height | 14.76 |
| Product Length | 36.07 |
| Replacement Part Number | PART-172042-0401 |
| Weight | Contact us |
| Country of Origin | - |
