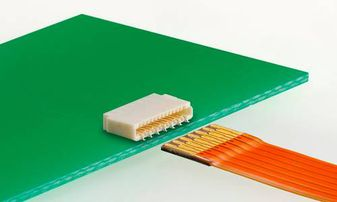

Please contact us for more photos of 0522070860

Part Number 0522070860
Manufacturer Molex
Quantity in stock 109110 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Conn FFC FPC Connector SKT 8 POS 1mm Solder RA SMD Embossed T R
Category Connectors
Family Connector FFC-FPC
ROHS Compliant Yes
MSL Level 0522070860
Datasheet download 0522070860.pdf
Request Quotation for 0522070860

0522070860 Specifications

Part Number 0522070860
Termination Method Solder
Mounting Surface Mount
Contact Gender SKT
Lead Finish Tin
Body Orientation Right Angle
Operating Temperature -20 to 85 °C
Pitch 1 mm
Product Dimensions 15.5 x 7.5 x 2.7 mm
Contact Material Phosphor Bronze
Contact Plating Gold Over Nickel
Housing Material Nylon 4/6
Product Depth 7.5 mm
Product Height 2.7 mm
Product Length 15.5 mm
Replacement Part Number PART-0522070860
Weight Contact us
Country of Origin -
