Please contact us for more photos of 0474081001
| Part Number | 0474081001 |
|---|---|
| Manufacturer | Molex |
| Quantity in stock | 560680 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn HDMI M 19 POS 0.5mm Solder RA SMD 19 Terminal 1 Port Embossed T R |
| Category | Connectors |
| Family | Connector Audio and Video |
| ROHS Compliant | Yes |
| MSL Level | 0474081001 |
| Datasheet download |  0474081001.pdf |
| Part Number | 0474081001 |
|---|---|
| Termination Method | Solder |
| Mounting | Surface Mount |
| Product Dimensions | 15 x 10 x 6.53 mm |
| Body Orientation | Right Angle |
| Gender | M |
| Pitch | 0.5 mm |
| Contact Plating | Gold Over Nickel |
| Rad Hard | No |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Max Processing Temp | 250 |
| Lead Finish | Tin/Bismuth |
| Operating Temperature | -20 to 85 °C |
| Product Depth | 10 mm |
| Product Height | 6.53 mm |
| Product Length | 15 mm |
| Replacement Part Number | PART-0474081001 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Amphenol-FCI | Conn 3.5mm Audio Jack F 5 POS Solder RA SMD 5 Terminal 1 Port T R Download PDF datasheet for 10038075-B1PLF.pdf |
|
TOP YANG TECHNOLOGY | Conn Micro USB Type B PL 5 POS Solder ST SMD 5 Terminal 1Port Download PDF datasheet for 102350-001-002.pdf |
|
TE Connectivity | Conn USB RCP RCP 4 4 POS Solder RA Thru-Hole 8 Terminal 2 Port Tray Download PDF datasheet for 5787745-1.pdf |
|
TE Connectivity | Conn USB RCP 4 POS Solder RA Thru-Hole 4 Terminal 1 Port Tray Download PDF datasheet for 292303-2.pdf |
|
Molex | Conn MicroCross RCP 24 POS 1.91mm Solder RA Thru-Hole 24 Terminal 1 Port Tray Download PDF datasheet for 0743204004.pdf |
|
Amphenol-FCI | Conn Mini-USB Type AB RCP 5 POS 0.8mm Solder RA SMD 5 Terminal 1 Port T R Download PDF datasheet for 10033526-N3212LF.pdf |
|
Molex | Conn MicroCross RCP 29 POS 1.91mm Solder ST Thru-Hole 29 Terminal 1 Port Tray Download PDF datasheet for 0743203004.pdf |
|
Amphenol-FCI | Conn USB Type C RCP 24 POS 0.5mm Solder ST SMD 24 Terminal 1Port T R Download PDF datasheet for 10132328-10013LF.pdf |
|
Molex | Conn Mini USB Type B PL 5 POS 0.8mm Solder ST Thru-Hole 5 Terminal 1Port Tray Download PDF datasheet for 104004-0903.pdf |
|

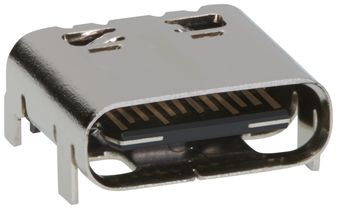

Molex | Conn USB RCP 24 POS 0.5mm Solder RA SMD 24 Terminal 1 Port Embossed T R Download PDF datasheet for 105450-0101.pdf |
