SN74AVC4T245DGVR Texas Instruments

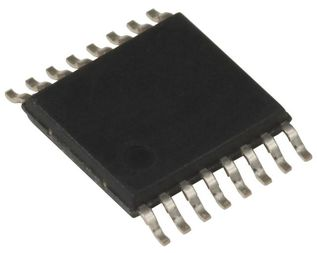

SN74AVC4T245DGVR Images

Please contact us for more photos of SN74AVC4T245DGVR

Part Number SN74AVC4T245DGVR
Manufacturer Texas Instruments
Quantity in stock 273870 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Voltage Level Translator 16-Pin TVSOP T R
Category Logic & Timing IC
Family Logic ICs
ROHS Compliant Yes
MSL Level SN74AVC4T245DGVR
Datasheet download SN74AVC4T245DGVR.pdf
Request Quotation for SN74AVC4T245DGVR

SN74AVC4T245DGVR Specifications

Part Number SN74AVC4T245DGVR
Supplier Package TVSOP
Mounting Surface Mount
Maximum Low Level Output Current 12 mA
Product Dimensions 3.6 x 4.4 x 1.05 mm
MSL Level 1
Logic Family AVC
Maximum High Level Output Current -12 mA
Maximum Quiescent Current 0.08 mA
Logic Function Voltage Level Translator
Operating Supply Voltage 1.8|2.5|3.3 V
Pin Count 16
Maximum Propagation Delay Time @ Maximum CL [email protected] ns
Rad Hard No
Output Type 3-State
Max Processing Temp 260
Lead Finish Gold
Package 16TVSOP
Replacement Part Number PART-SN74AVC4T245DGVR
Weight Contact us
Country of Origin -
