TYS50402R2N-10 Laird

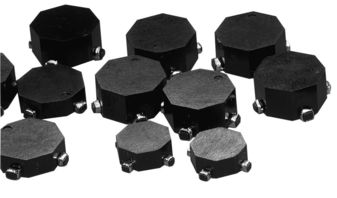

TYS50402R2N-10 Images

Please contact us for more photos of TYS50402R2N-10

Part Number TYS50402R2N-10
Manufacturer Laird
Quantity in stock 643250 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Ind Power Shielded 2.2uH 30% 100KHz 3.8A T R
Category Inductor
Family Inductor Surface Mount
ROHS Compliant Yes
MSL Level TYS50402R2N-10
Datasheet download TYS50402R2N-10.pdf
Request Quotation for TYS50402R2N-10

TYS50402R2N-10 Specifications

Part Number TYS50402R2N-10
Package/Case 5 X 5 X 4(Max)
Pin Count 2
Protection Style Shielded
Rad Hard No
Test Frequency 100 kHz
Supplier Package SMD
Maximum Processing Temperature 255 °C
Inductance 2.2 uH
Maximum DC Current 3.8 A
Type Power
Operating Temperature -40 to 125 °C
Maximum DC Resistance 19 MOhm
Maximum Self Resonant Frequency 50 MHz
Package Dimensions 5 x 5 x 4 mm
Tolerance 30 %
Product Depth 5 mm
Product Height 4(Max) mm
Product Length 5 mm
Replacement Part Number PART-TYS50402R2N-10
Weight Contact us
Country of Origin -
