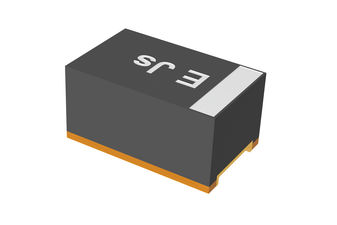

Please contact us for more photos of T530X108M2R5ATE005
| Part Number | T530X108M2R5ATE005 |
|---|---|
| Manufacturer | KEMET |
| Quantity in stock | 845920 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Tant Solid 1000uF 2.5V X CASE 20% (7.3 X 4.3 X 4mm) SMD 7343-43 T R |
| Category | Capacitors |
| Family | Capacitor Tantalum Solid SMT |
| ROHS Compliant | Yes |
| MSL Level | T530X108M2R5ATE005 |
| Datasheet download |  T530X108M2R5ATE005.pdf |
| Part Number | T530X108M2R5ATE005 |
|---|---|
| Construction | Flat |
| Lead Finish | Matte Tin |
| Leakage Current | 250 uA |
| Case Code | X |
| Polarity | Polar |
| Product Dimensions | 7.3 x 4.3 x 4 mm |
| Voltage(DC) | 2.5 V |
| Package/Case | 7343-43,X |
| Capacitance Value | 1000 uF |
| Dissipation Factor | 8 % |
| Case Size | 7343-43 |
| Operating Temperature | -55 to 125 °C |
| Mounting | Surface Mount |
| Max Processing Temp | 260 |
| Case Style | Molded |
| Tolerance | 20 % |
| MSL Level | 3 |
| Equivalent Series Resistance | 0.005 Ohm |
| Product Depth | 4.3 mm |
| Product Height | 4 mm |
| Product Length | 7.3 mm |
| Replacement Part Number | PART-T530X108M2R5ATE005 |
| Weight | Contact us |
| Country of Origin | - |
