SN74AHCT574DBR Texas Instruments

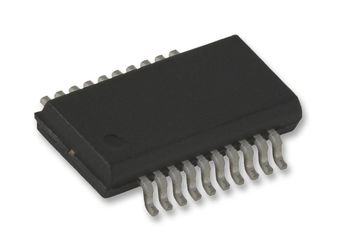

SN74AHCT574DBR Images

Please contact us for more photos of SN74AHCT574DBR

Part Number SN74AHCT574DBR
Manufacturer Texas Instruments
Quantity in stock 836160 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SSOP T R
Category Logic & Timing IC
Family Logic ICs
ROHS Compliant Yes
MSL Level SN74AHCT574DBR
Datasheet download SN74AHCT574DBR.pdf
Request Quotation for SN74AHCT574DBR

SN74AHCT574DBR Specifications

Part Number SN74AHCT574DBR
Bus Hold No
Maximum Quiescent Current 0.004 mA
Rad Hard No
Mounting Surface Mount
MSL Level 1
Maximum Operating Supply Voltage 5.5 V
Pin Count 20
Input Signal Type Single-Ended
Triggering Type Positive-Edge
Number of Output Enables per Element 1
Lead Finish Gold
Output Signal Type Single-Ended
Number of Channels per Chip 8
Number of Elements per Chip 1
Operating Temperature -40 to 85 °C
Product Dimensions 7.2 x 5.3 x 1.95 mm
Screening Level Commercial
Typical Operating Supply Voltage 5 V
Polarity Non-Inverting
Maximum High Level Output Current -8 mA
Propagation Delay Test Condition 50 pF
Logic Family AHCT
Fabrication Technology CMOS
Maximum Propagation Delay Time @ Maximum CL 10.6@5V ns
Logic Function D-Type Bus Interface
Number of Element Outputs 8
Minimum Operating Supply Voltage 4.5 V
Maximum Low Level Output Current 8 mA
Number of Element Inputs 8
Supplier Package SSOP
Output Type 3-State
Max Processing Temp 260
Package 20SSOP
Replacement Part Number PART-SN74AHCT574DBR
Weight Contact us
Country of Origin -
