MC74AC374DWR2G ON Semiconductor

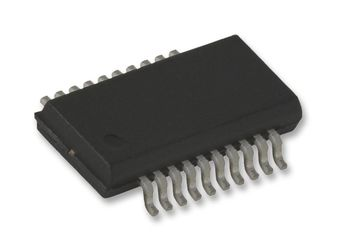

MC74AC374DWR2G Images

Please contact us for more photos of MC74AC374DWR2G

Part Number MC74AC374DWR2G
Manufacturer ON Semiconductor
Quantity in stock 428030 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SOIC W T R
Category Logic & Timing IC
Family Logic ICs
ROHS Compliant Yes
MSL Level MC74AC374DWR2G
Datasheet download MC74AC374DWR2G.pdf
Request Quotation for MC74AC374DWR2G

MC74AC374DWR2G Specifications

Part Number MC74AC374DWR2G
Number of Elements per Chip 1
Output Type 3-State
Typical Operating Supply Voltage 5 V
Maximum Low Level Output Current 24 mA
Polarity Non-Inverting
Propagation Delay Test Condition 50 pF
Fabrication Technology CMOS
Number of Element Outputs 8
Logic Function D-Type Bus Interface
Minimum Operating Supply Voltage 2 V
Logic Family AC
Maximum Propagation Delay Time @ Maximum CL [email protected]|9.5@5V ns
Number of Element Inputs 8
Maximum Operating Supply Voltage 6 V
Operating Temperature -40 to 85 °C
Max Processing Temp 260
Maximum Quiescent Current 0.008 mA
Bus Hold No
Supplier Package SOIC W
Rad Hard No
Mounting Surface Mount
Product Dimensions 12.95 x 7.6 x 2.4 mm
Lead Finish Matte Tin
Input Signal Type Single-Ended
Maximum High Level Output Current -24 mA
Number of Channels per Chip 8
MSL Level 3
Number of Output Enables per Element 1
Triggering Type Positive-Edge
Pin Count 20
Output Signal Type Single-Ended
Package 20SOIC W
Replacement Part Number PART-MC74AC374DWR2G
Weight Contact us
Country of Origin -
